BN-007 - LED 800W Framingm Moving Head Light

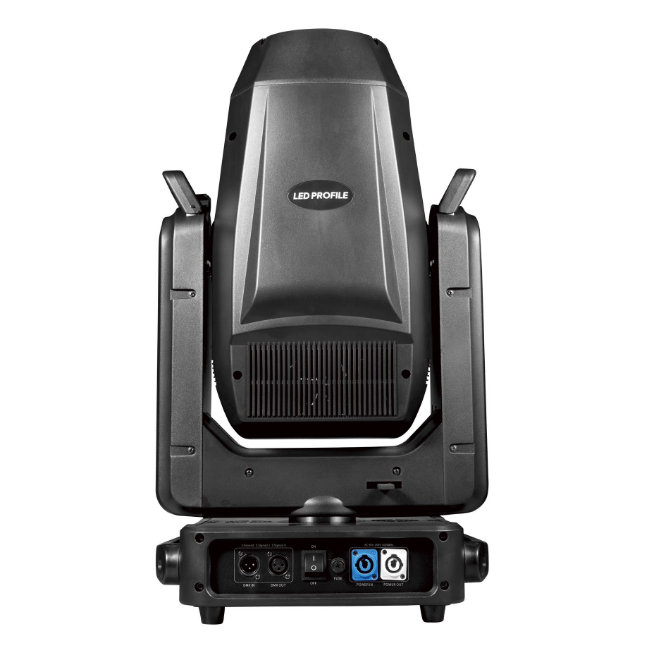

BN-007 – LED 800W Framingm Moving Head Light

BN-007 – LED 800W Framingm Moving Head Light is a professional stage lighting fixture for concerts, clubs, weddings, theatres, rental events and fixed installations.

  • Suitable for event companies, rental teams and entertainment venues
  • Designed for reliable stage lighting performance and practical operation
  • Contact BertsLED for specifications, quantity pricing, voltage options and shipping details
SKU: BN-007 Category: Tags: , ,

Product Inquiry

Need specifications, quantity pricing or shipping information? Contact BertsLED with the model number, required quantity and destination country for quotation support.

Contact BertsLED

Specification

Input Voltage AC100–240V,50/60Hz
Light Source 800W LED module
Rated Power 1000W
LEDLifespan 20,000 hours
Color Temperature 7200K
CRI Standard mode Ra>75, High CRI mode Ra>90
LuminousFlux 55,000 lm @ 5m
Signal Interface 3-pin XLR
Control Protocol DMX512, RDM
DMX Channels 35CH (international standard)
DisplaySystem LCD display, Chinese/English switchable
FixedColors 5 colors + open
ColorMixing Independent CMY color mixing system
CTOAdjustment Independent linear CTO adjustment 2800–6000K
PrismWheel Independent 8-facet prism, bi-directional rotation
EffectWheel Dynamic effect wheel with simulated flame, flowing water and other motion effects
FixedGobo Wheel 6 fixed gobos + open
RotatingGlassGobo Wheel 7 interchangeable glass gobos + open
FramingSystem 4 independent framing shutters, each blade individually closable, rotatable up to 90°
Frost System Independent linear frost system 0–100%
OpticalSystem 4-in-1 optical lens design, Beam mode 2°–6°, Spot mode 10°–48°, Wash mode 0°–52°, freely switchable to achieve Beam/Spot/Wash/Framing functions
Dimming System Linear dimming 0–100%
DimmingFrequency Adjustable 1200–2400Hz, flicker-free for 4K camera shooting
Pan 540° (16-bit resolution)
Tilt 270° (16-bit resolution)
IP Rating IP20
Operating Temperature 0°C to 45°C
