Specification

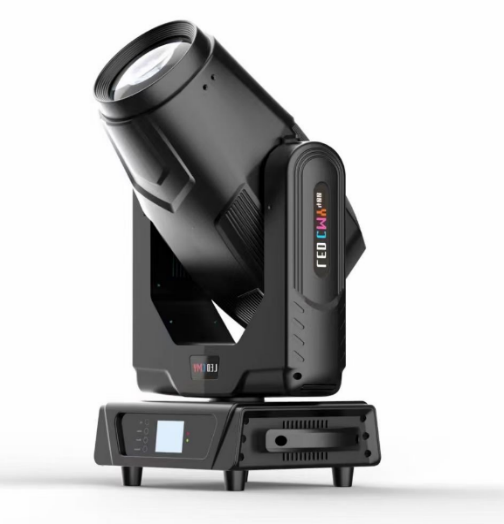

| Product Name | LED 500W CMY 3-in-1 Gobo Moving Head Light |
|---|---|
| Input Voltage | AC110–240V,50/60Hz |
| Light Source | 420W white LED module |
| Color Temperature | 8000K |
| CRI | Ra≥75 |
| Lifespan | 50,000 hours |
| LuminousFlux | 105,000 lm @ 5m |
| Rated Power | 500W |
| DMX Channels | 22CH |
| Pan | 540° (16-bit resolution) with electronic correction |
| Tilt | 270° (16-bit resolution) with electronic correction |
| Dimming System | Linear dimming 0–100% |
| Focus System | Linear focus adjustment from 4m to 50m |
| Frost System | 1 independent frost effect for soft and natural beam output |
| ZoomAngle | 4–35° |
| HighSpeedStrobe | 0–30Hz adjustable strobe with strobe macro functions |
| Color Wheel | 12 colors + open, half-color effect supported |
| ColorMixing | Independent CMY + CTO color mixing system |
| FixedGobo Wheel | 12 fixed gobos + open |
| RotatingGobo Wheel | 7 glass gobos, each with independent clockwise and counterclockwise rotation |
| Prism System | Standard single 6-linear prism and 8+8-facet prism, each prism independently rotatable in both directions |
| MacroFunctions | Console reset, auto mode, master/slave mode |
| Display | LCD display with dual control via buttons and touch operation |
| Control Signal | DMX512 (international standard) with RDM support, online software upgrade and address setting |
| Cooling System | Axial fan cooling system for enhanced heat dissipation |
| Safety Protection | Electronic temperature control with overheat protection, automatic power cut-off in case of overheating or system failure |
| Housing Material | High-temperature resistant plastic |
| Operating Temperature | -20°C to 40°C |
| IP Rating | IP20 |
